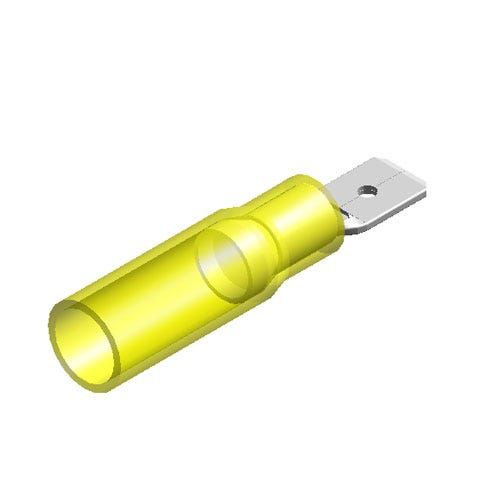

INSULATED HEAT SHRINK MALE DISCONNECTOR [WATERPROOF] YELLOW 4.8 (25PCS)
Article number SC2548Y
Delivery time
Article in the following categories
Article number SC2548Y
EAN-number 8718953830651
QTY in packaging
This thermoseal cable shoe, also called cable lug connector, are fully insulated cable lugs. These cable connectors are suitable up to 600V with a maximum operation temperature of -55 ° C to 125 ° C , and built from a copper tinned material with a nylon insulation. These cable skills are suitable to connect / shrink two cables to each other. The cable lugs are available in the colors red (0.5 ~ 1.5 mm²), blue (1.5 ~ 2.5 mm²), and yellow (4.0 ~ 6.0 mm²), and in various packaging units. After pinching the cable lug on the cable, the insulation can be heated with a fohn that shrinks around the cable and ensures an extra sealing seal. As a result, it is resistant to isopropyl alcohol, trichloroethylene, gasoline, battery acid, diesel fuel, engine oil, antifreeze, brake fluid, 5% salt water.
