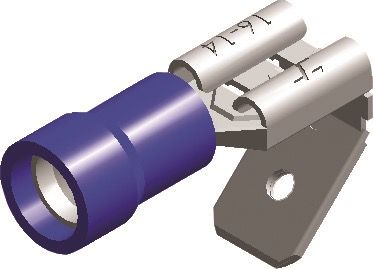

PVC INSULATED PIGGY BACK DISCONNECTORS BLUE 6,8X0,8 (5PCS)

This Piggyback cable lugs are fully insulated cable lugs. These cable lugs are suitable up to 600V with a maximum operation temperature of 75 ° C, and built from a copper-tinned material with a PVC insulation. These cable skills are suitable for connecting a cable to each other, the male cable shoe is placed in the back of the sleeve such as a pig bridge. This high-quality cable shoe are equipped with an easy entry copper sleeve, this means that an extra sleeve has been pressed into the entrance to the cable lug in the production, so that the insertion of the cable is enormously simple. Especially with the professional user, this quality is greatly appreciated because it ensures an efficient method. The cable lugs are available in the colors red (0.5 ~ 1.5 mm²), blue (1.5 ~ 2.5 mm²), and yellow (4.0 ~ 6.0 mm²), and in various packaging units. In addition, there is a distinction in tab width, the most common tab widths are 2.8 mm, 4.8 mm, 6.3 mm and 9.4 mm with a tab thickness of 0.5 mm, 0.8 mm or 1.2 mm. This blue cable lug has a tab width of 6.3 mm.
