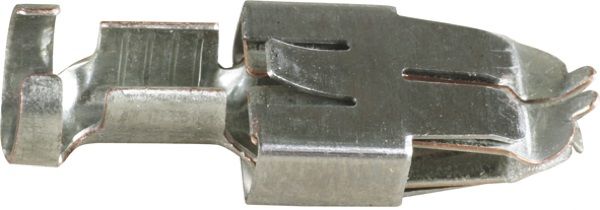

FLAT SPRING CONTACT 2LIP UNINSULATED NS 0.5-1.MM² 4.8/6.3X0.8 (25PCS)
Article number SC80063
In stock
Article in the following categories
Article number SC80063
EAN-number 8718953270990
QTY in packaging
Wire diameter0,5 mm²
0,75 mm²
1,0 mm²
Tab width4,8mm
Plug type: flat stitch sleeve
Suitable for: in Connectivity
diameter [mm²]: from 0.5 mm² of diameter [mm²]: up to 1 mm²: surface: Tinned
DOP height [mm] : 0.8 mm
DOP width 1 [mm]: 4.8 mm
cap width 2 [mm]: 5.8 mm
cap width 3 [mm]: 6.3 mm Temperature range of [° C]: -40 ° C
Temperature range to [° C]: +130 ° C
SVHC: No SVHC available!
Suitable for: in Connectivity
diameter [mm²]: from 0.5 mm² of diameter [mm²]: up to 1 mm²: surface: Tinned
DOP height [mm] : 0.8 mm
DOP width 1 [mm]: 4.8 mm
cap width 2 [mm]: 5.8 mm
cap width 3 [mm]: 6.3 mm Temperature range of [° C]: -40 ° C
Temperature range to [° C]: +130 ° C
SVHC: No SVHC available!
